What is The Carry Cots Dynamic Strength Tester GT-MT01
Jul 05, 2024
What is The Carry Cots Dynamic Strength Tester GT-MT01
In the realm of modern product testing, particularly for infant equipment, dynamic load testing holds paramount importance. The Carry Cots Dynamic Strength Tester GT-MT01, designed specifically for this purpose, provides manufacturers and quality control departments with an exceptional solution. This article delves into the applications, standards, features, and specific performance of this sophisticated testing equipment.
Applications
The Carry Cots Dynamic Strength Tester GT-MT01 is primarily used for testing the dynamic strength of carry cots. Such tests are crucial to ensure that products can withstand varying loads during actual use, thereby guaranteeing the safety of infants. By simulating real-world dynamic load conditions, the EN 1466-2014 Testing Machine effectively evaluates the reliability and safety of carry cots over extended periods.
Compliance with Standards
The Baby Carry Cot Dynamic Strength Tester is meticulously designed to adhere to the EN 1466-2014 Section 7.9.2.2.2 standard. This standard outlines the requirements for testing carry cots under dynamic load conditions, including the testing frequency, loading method, and evaluation criteria. By conforming to this international standard, the Carry Baby Cot Testing Machine ensures authoritative and consistent test results, providing robust support for product quality in the global market.
Product Features

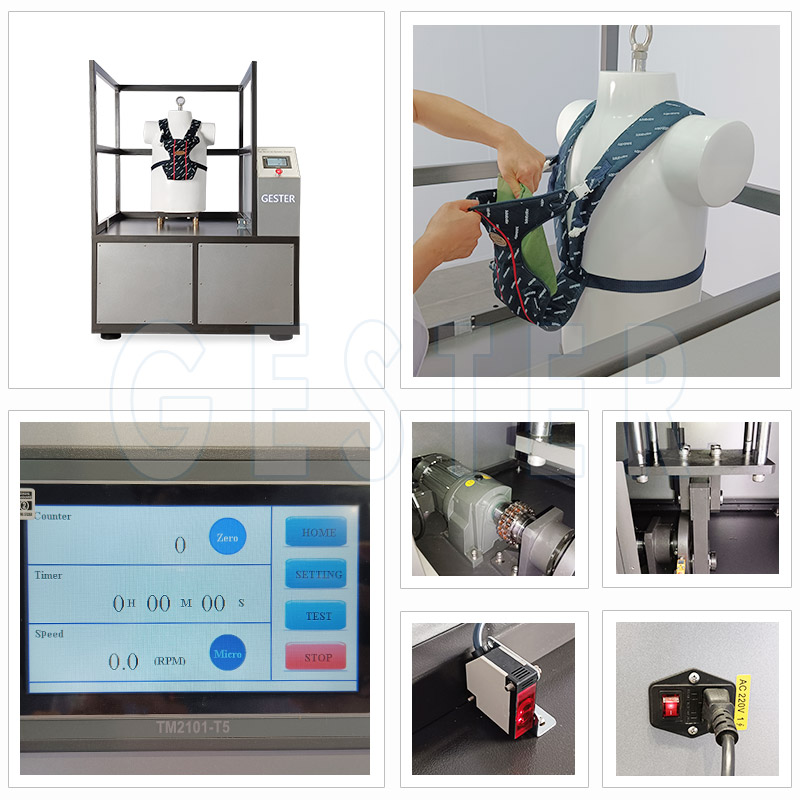

The control system of the Carry Baby Cot Testing Machine is developed in-house, featuring time setting and counting functions. The test control panel is equipped with start, stop, pause, count, and clear functions, with a counting range of up to 999,999 cycles. The machine automatically stops when the preset number of cycles is reached or when the carry cot strap is damaged. This design not only enhances the automation level of the test but also minimizes human error.
The control system operates the cylinders to move up and down. When the cylinder reaches the lower end, the control system triggers the release of electromagnets near the lower part of the switch. Under the influence of gravity, the free-fall impact on the spring end is absorbed by the spring, causing repeated oscillations, with the cylinder driving the electromagnet to the lower end repeatedly. The impact speed is 10 cycles per minute. This series of precise and complex actions ensures the rigorousness of the testing process and the reliability of the test data.
Detailed Testing Process
1. Test Preparation: Secure the carry cot to be tested on the machine, ensuring its correct and stable position.
2. Parameter Setting: Set the test cycles and other relevant parameters on the control panel. According to EN 1466-2014 standard, the testing frequency is set to 10 cycles per minute.
3. Start Testing: Press the start button, the cylinder begins its up and down motion, with the electromagnet releasing and engaging at the set frequency, simulating the dynamic load conditions of the carry cot.
4. Process Monitoring: During the test, the control system continuously monitors the movements of the cylinder and the electromagnet, recording the test cycles. The machine automatically stops when the preset number of cycles is reached or when the carry cot strap is damaged.
5. Data Analysis: After the test is completed, clean the equipment and record the test results. By analyzing the test data, the dynamic strength and durability of the carry cot in actual use can be assessed.
Application Advantages
6. Efficient and Accurate: The Carry Cots Testing Equipment employs an advanced control system to ensure the efficiency of the testing process and the accuracy of the data.
7. High Automation Level: The fully automated control reduces human intervention, enhancing the repeatability and reliability of the test.
8. User-Friendly: The simple and intuitive interface allows operators to easily set parameters and monitor the testing process.
Market Prospects
As consumer concerns about the safety of infant products continue to rise, the demand for high-precision testing equipment among manufacturers and quality control institutions is also growing. The Carry Cots Dynamic Strength Tester GT-MT01, with its exceptional performance and reliable test results, has secured a significant position in the market. Whether for new product development or quality control of existing products, the EN1466 Carry Cots Test Machine is an indispensable tool.
The Carry Cots Dynamic Strength Tester GT-MT01, with its precise design and efficient testing process, provides reliable assurance for the dynamic strength testing of carry cots. By strictly adhering to international standards, this equipment not only enhances the scientific rigor and reliability of tests but also robustly supports the safety of infant products. In the ongoing pursuit of product quality and safety, the Children Product Testing Machine is undoubtedly the ideal choice for every infant product manufacturer and quality control department.
