Using the Toys Flammability Tester GT-M17 for Children’s Headwear Toys Testing
Jul 17, 2024
Using the Toys Flammability Tester GT-M17 for Children’s Headwear Toys Testing
In the realm of children's toy safety standards, flammability testing is a crucial component. As parents' demands for the safety of children's toys continue to rise, toy manufacturers and testing institutions are constantly seeking more efficient and accurate testing methods. The Toys Flammability Tester GT-M17, a professional flammability testing device, is designed to assess the flammability performance of children's clothing, toys, and their accessories.

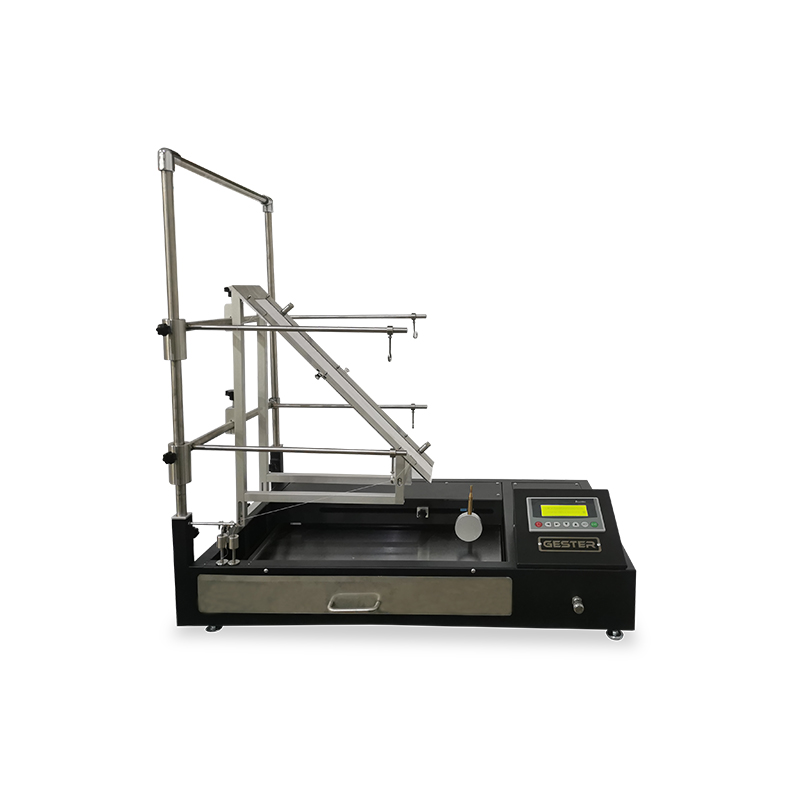

Introduction to the Toys Flammability Tester GT-M17
The Toys Flammability Tester GT-M17 is primarily used to test the flammability performance of children's clothing, toys, and their accessories. This device can evaluate the burning speed and time of various toys, featuring the following key characteristics:
1. PLC Control with Precise Timing and Human-Machine Interface: The Toys Flammability Tester uses a PLC control system to ensure precision and stability in the testing process. Operators can easily set and monitor test parameters via the human-machine interface, enhancing both testing efficiency and accuracy.
2. Versatile Sample Clamps for Different Testing Methods: Equipped with multiple sample clamps, the Toys Flammability Tester can accommodate various toy testing requirements. Whether it's headwear, clothing, or other accessories, the appropriate clamp ensures secure and accurate testing.
3. Easy Operation of Clamps: Designed for simplicity, the Toys Flammability Tester's clamps are easy to install and remove, reducing the time required for test preparation.
4. Adjustable Clamps for Different Samples: The clamps can be freely adjusted to fit the shape and size of different samples, ensuring proper fixation and accurate test results.
5. Adjustable Flame Angle and Position: The flame angle and position can be adjusted to meet testing requirements, simulating real burning conditions and improving the scientific and reliable nature of the tests.
Testing Process with the Toys Flammability Tester GT-M17
1: Install the gas tank.
2: Press down on the GAS valve and turn on the gas switch.Adjust the combustion flow rate.
3.Turn on the power.
4: Install the T-type fork.
5: Install the specimen.
6: Adjust the ignition position.
7: Press ▼. Select the test mode. Here select Children headwear Toys test for demonstration.
Set the ignition time.
Select the length of the specimen according to the size of the specimen (length＜50mm or length≥50mm). Here the specimen is larger than 50 mm, so choose length ≥50 mm.
Press SET to confirm all setting.
8: Step 1: Press ▶ button to reset. Step 2: press ◀ button to open the gas solenoid valve.
9：Ignite the burner.
10: Use the Flame Height Ruler to measure the height of flame. Adjust the test flame height to 20mm by adjusting the flow switch. Then adjust the nozzle to 45 angle.
11: Click "ENT" to start the test.
12: Press ◀ when the test is completed.
13:Check the results.
The Toys Flammability Tester GT-M17 plays a significant role in the safety testing of children's headwear toys as a professional flammability testing device. Its precise PLC control system, diverse sample clamps, flexible flame angle and position adjustment features, and user-friendly operation make it an ideal choice for toy manufacturers and testing institutions. By using the Toys Flammability Tester for flammability performance testing of children's headwear toys, product safety can be effectively improved, ensuring the health and safety of children.
